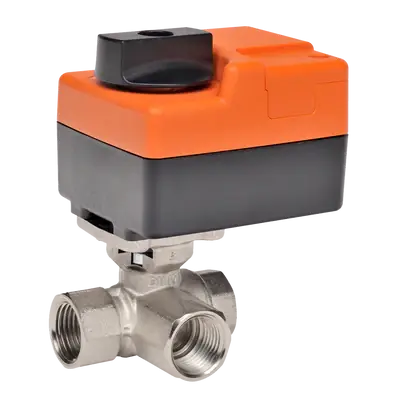

Luxury Belimo B313B+TR24-3-T | CCV | 0.5 | 3 Way | 4.7 Cv | w/ Non-Spg | 24V | Floating

The Belimo B313B+TR24-3-T is a valve designed for use in air handling units on heating or cooling coils and fan coil units. It is suitable for hydronic systems with variable or constant flow. This three-way valve can be applied in various systems, including Unit Ventilators, VAV box re-heat coils, and bypass loops.

• Flow Range: Suitable for chilled or hot water up to sixty percent glycol
• Actuator Type: Non fail-safe with a floating control type
• Installation: Internal threaded end fittings ensure easy connection

Product Highlights

This valve offers reliable performance and is essential for maintaining desired fluid temperatures in HVAC applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: B313B+TR24-3-T

Technical Specifications

• Angle of Rotation: ninety degrees
• Control Type: Floating/three-point
• Fluid: Chilled or hot water up to sixty percent glycol
• Pattern: Three-way
• Pressure Independent: No
• Trim: Chrome plated brass
• Valve Size: zero point five inches
• Degree of Protection: IP40 NEMA1
• Power Consumption (Running): one watt
• Voltage: AC twenty-four volts
