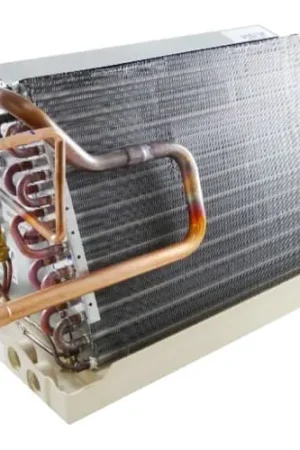

Sustainable Coils 1024A16 2 Ton Low Profile 3-Row Uncased Replacement A Coil Top Pick

The Sustainable Coils 1024A16 2 Ton Low Profile 3-Row Uncased Replacement A Coil is designed to provide efficient cooling solutions for HVAC systems. This coil is ideal for professionals in heating and cooling sectors requiring dependable and long-lasting components.

• Compatible with R-22 refrigerant
• Equipped with aluminum end plates to resist rust
• Pre-swaged line connection with dry nitrogen holding charge

Product Highlights

Featuring a 2-ton cooling capacity, this uncased replacement A coil includes advanced design features like 3/8 inch OD Uniguard tubing and plastic drain pans. It is designed for seamless integration with F-Series air handlers.

Product Information

Standard Information

• Brand: Sustainable Coils
• MPN: 1024A16
• Product Name: 2 Ton Low Profile 3-Row Uncased Replacement A Coil

Technical Specifications

• Width: 16 inches
• Height: 10.5 inches
• Length: 19.5 inches
• Weight: 19 pounds
• Material: Aluminum Fin
• For Use With: F-Series Air Handler
• Catalog Number: 1024A16
• Liquid Line Size: 3/8 inches
• Refrigerant Type: R-22
• Suction Line Size: 3/4 inches
• Specifications Met: UL Listed
• Drain Connection Size: 3/4 inches
• Cooling Capacity In Tons: 2.0 tons
