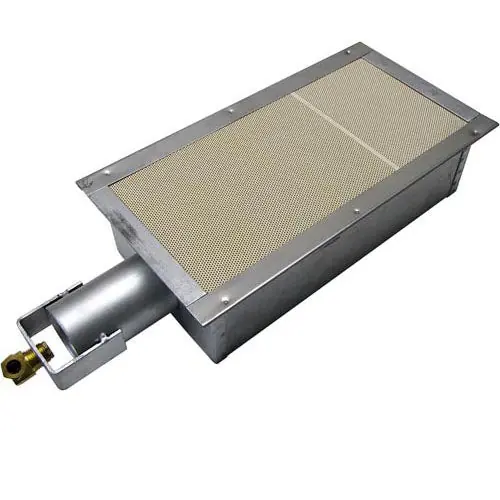

Time-Limited Burner I/R – Broiler for Royal Range 1603

This item for Royal Range MPN 1603 is an infrared broiler burner designed for commercial kitchen equipment. It features a top box measuring twelve and three-quarters by seven inches outside diameter. The weight of the burner is five point six seven pounds. It has a ceramic area measuring eleven and one-quarter by five and one-eighth inches.

• Infra-red broiler burner
• Dimensions: twelve and three-quarters x seven inches OD
• Compatible with American Range equipment

Product Highlights

This product is optimized for performance in high-demand cooking environments, ensuring efficient heat distribution.

Product Information

Standard Information

• Brand: Royal Range

Technical Specifications

• Weight: 5.67 pounds
• Dimensions: 17 inches (length) x 7.5 inches (width) x 3.3 inches (height)
• Venturi Diameter: 2.122 inches
• Orifice Size: #48 x 3/8 CCT
• Total Length Without Orifice: 16.5 inches
• Ceramic Area Size: 11.25 x 5.125 inches
