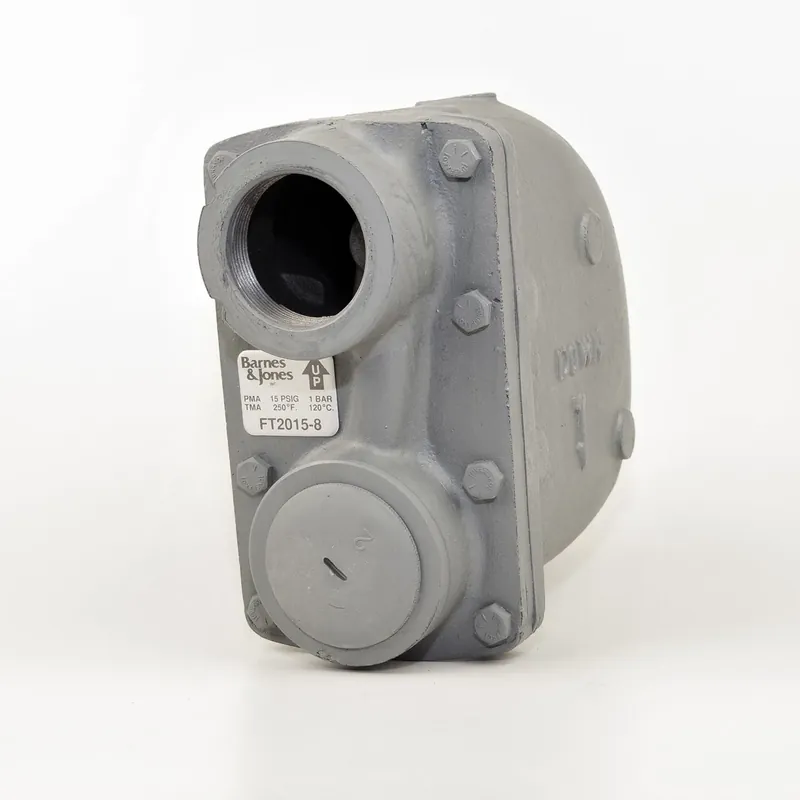

Trusted Brand Barnes & Jones FT2015-8 2 Float & Thermostatic Trap

The Barnes & Jones float and thermostatic (F&T) steam trap, model FT2015-8, features a 2 trap connection in a same side, H-pattern configuration. This setup allows steam to enter from either side of the trap, and condensate to discharge from either the opposite or the same side of the trap. This flexibility aids in various piping configurations and installations. 2000 Series F&T traps are designed for continuous drainage and can handle low, medium, and high pressure steam mains. They come equipped with stainless steel internal parts for durability. The FT2015-8 is made of cast iron and operates under a maximum pressure of 15 psi. It has a significant capacity of 11,445 pounds per hour, making it suitable for heat exchange equipment where air and non-condensable gases need to be vented swiftly. This model excels in applications where modulating pressures or varying loads are common, efficiently venting air at low pressures and managing startup loads.

• Maximum operating pressure of 15 psi.
• Made from durable cast iron.
• Capacity of 11,445 pounds per hour.

Product Highlights

The Barnes & Jones FT2015-8 is an essential component for effective steam handling in heating systems.

Product Information

Standard Information

• Brand: Barnes & Jones
• MPN: FT2015-8

Technical Specifications

• Model: FT2015-8
• Steam Trap Type: Float & Thermostatic
• Body Material: Cast Iron
• Steam Trap Connection Size: 2 inches
• Steam Trap Mounting: H-Pattern, Same Side
• Max Pressure: 15 psi
• Weight: 22 pounds
