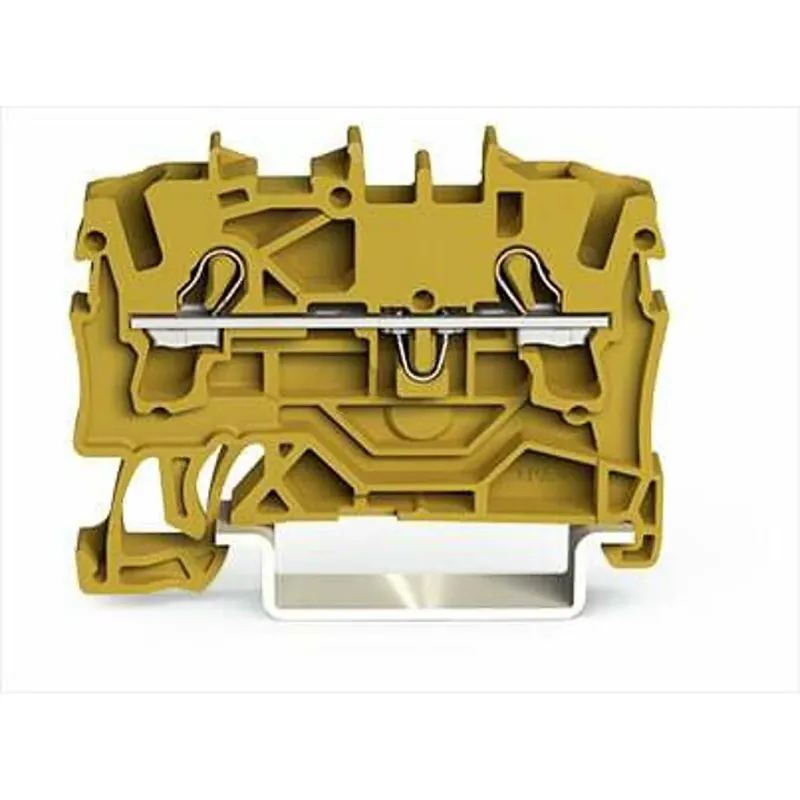

WAGO 2002-1206 Terminal Block Feed-Through 24A Yellow Low Price

The WAGO 2002-1206 terminal block is engineered for efficiency and reliability in power distribution and protection. Primarily used in control cabinets, this feed-through terminal block features a sturdy polyamide build and supports wire sizes from 22AWG to 12AWG. Its innovative push-in CAGE CLAMP technology facilitates quick and tool-free wiring, making it ideal for a wide range of industrial applications.

• DIN Rail mount compatible, measuring 1.909 inches in height and 0.205 inches in width.
• Designed to handle currents up to 24A and supports a voltage rating of up to 800 volts.
• Colored in vibrant yellow for easy identification amidst complex configurations.

Product Highlights

Optimized for high-density wiring, the terminal block’s compact design and push-in connectivity reduce installation time and improve connection security. Ideal for applications requiring explosion protection (Ex e II).

Technical Specifications

• Manufacturer: WAGO
• Country of Origin: Germany
• Material: Polyamide (PA66)
• Connection Type: Cage-clamp terminals
• Nominal Cross Section: 2.5 mminchu00b2
• Dimensions: Height: 48.5 mm, Width: 5.2 mm, Depth: 32.9 mm
